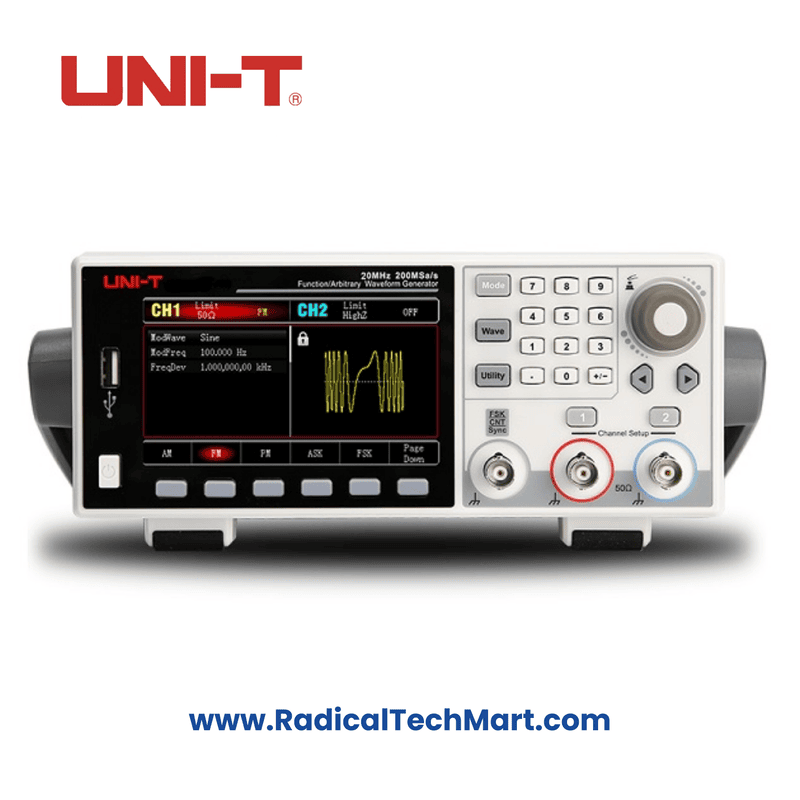

UNI-T UTG1022X-PA Function generator, 20 Mhz 2 Channel

The UTG1000X series is a high-performance, economical, and multi-functional function/arbitrary waveform generator designed for precise and stable waveform output. It offers a resolution as low as 1μHz, ensuring clean, low-distortion signals. This device is ideal for applications in learning, testing, and production due to its superior technical specifications and user-friendly operation.

Key features include:

• Maximum Output Frequency: 20 MHz
• Sample Rate: 200 MSa/s
• Vertical Resolution: 16-bit
• Channels: 2
• Built-in Power Pre-Amplifier: Delivers up to 4 W of maximum power output
• Modulation Functions: Includes AM, FM, PM, ASK, FSK, PSK, and PWM
• Arbitrary Waves: 200 built-in arbitrary waveforms
• Frequency Sweep and Pulse String Output: Supported
• Arbitrary Wave Length: 4k points
• Display: 4.3-inch TFT LCD for clear and intuitive graphic display

The UTG1000X series is backed by a 3-year warranty, making it a reliable choice for various waveform generation needs.
