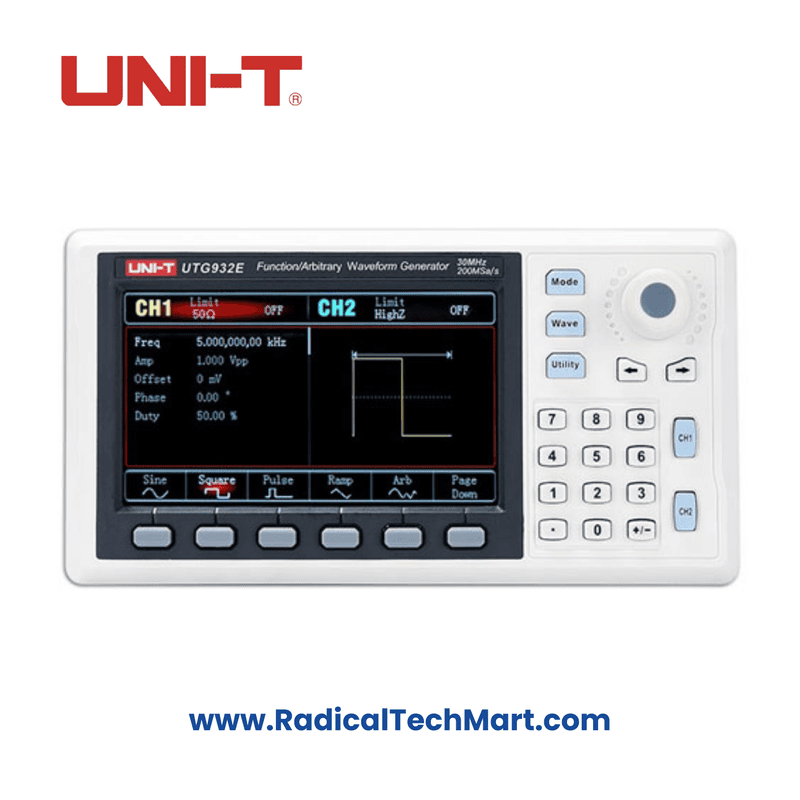

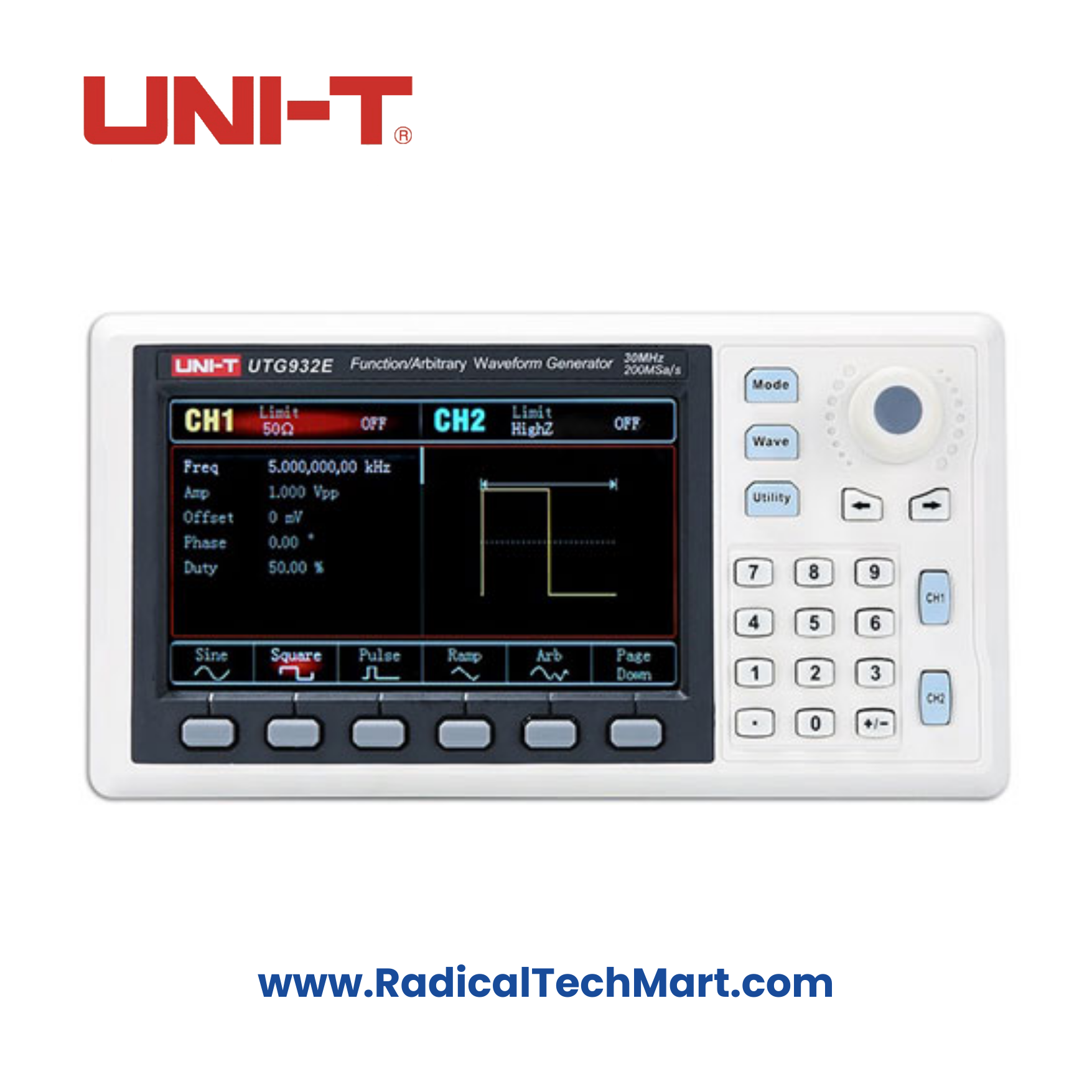

UNI-T UTG932E Function/Arbitrary Waveform Generator – 30 MHz

Product Summary:

• The UNI-T UTG932E is a compact, high-precision function/arbitrary waveform generator designed for professional testing environments. With a max frequency of 30 MHz and 14-bit vertical resolution, it delivers a full range of signals including sine, square, ramp, pulse, noise, and more.

Key Features:

• Max frequency: 30 MHz

• Sampling rate: 200MS/s

• 14-bit vertical resolution

• Waveforms: Sine, square, ramp, pulse, DC, noise, arbitrary

• Sweep modes: Linear & logarithmic

• Output impedance: 50Ω/High Z

• Amplitude: 1mVpp10Vpp (50Ω), 2mVpp20Vpp (High Z)

• 4.3" TFT LCD Display

• Compact and ergonomic design

• Power supply: 100–240VAC, 50/60Hz

• 3-Year warranty

Application:

• R&D and product development labs

• Signal simulation for embedded system testing

• RF, communication, and analog circuit testing

• Academic & training institutes

• Troubleshooting and repair of signal-dependent devices

Product Benefits:

• Portable and palm-sized for easy handling

• Wide waveform coverage for various test needs

• High-resolution output ensures accurate simulation

• Reliable performance with 3-year warranty

• Suitable for both beginners and professionals

FAQ:

Q1: Can I use the UTG932E for automotive ECU simulation?
A: Yes, with its arbitrary waveform support and precise signal output, it's suitable for generating signals used in ECU development and testing.

Q2: What’s the benefit of 14-bit resolution in waveform generation?
A: Higher resolution provides finer waveform detail, which is critical for high-precision analog and mixed-signal testing.

Q3: Does it support external triggering?
A: Yes, the UTG932E supports both internal and external triggering for controlled waveform output.
