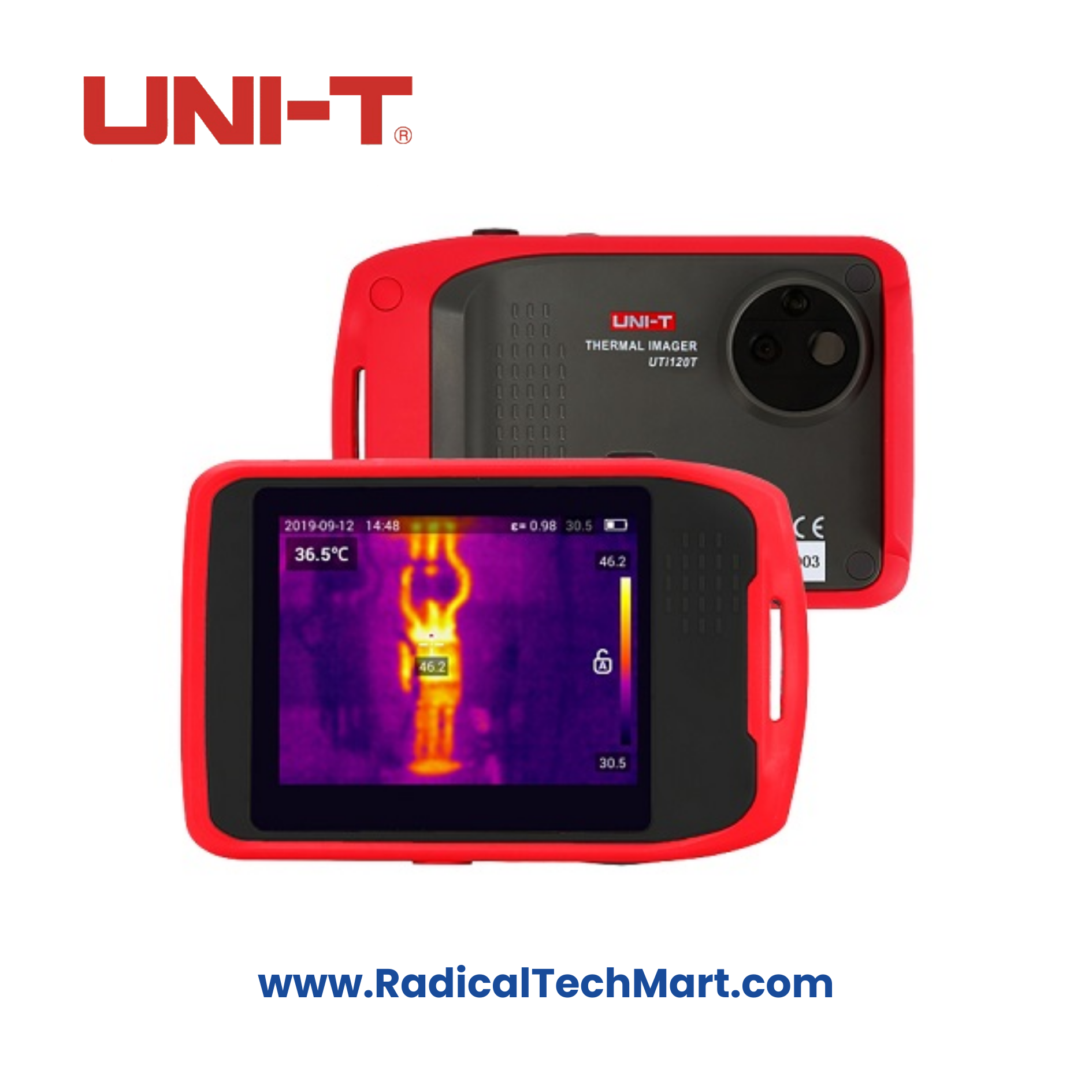

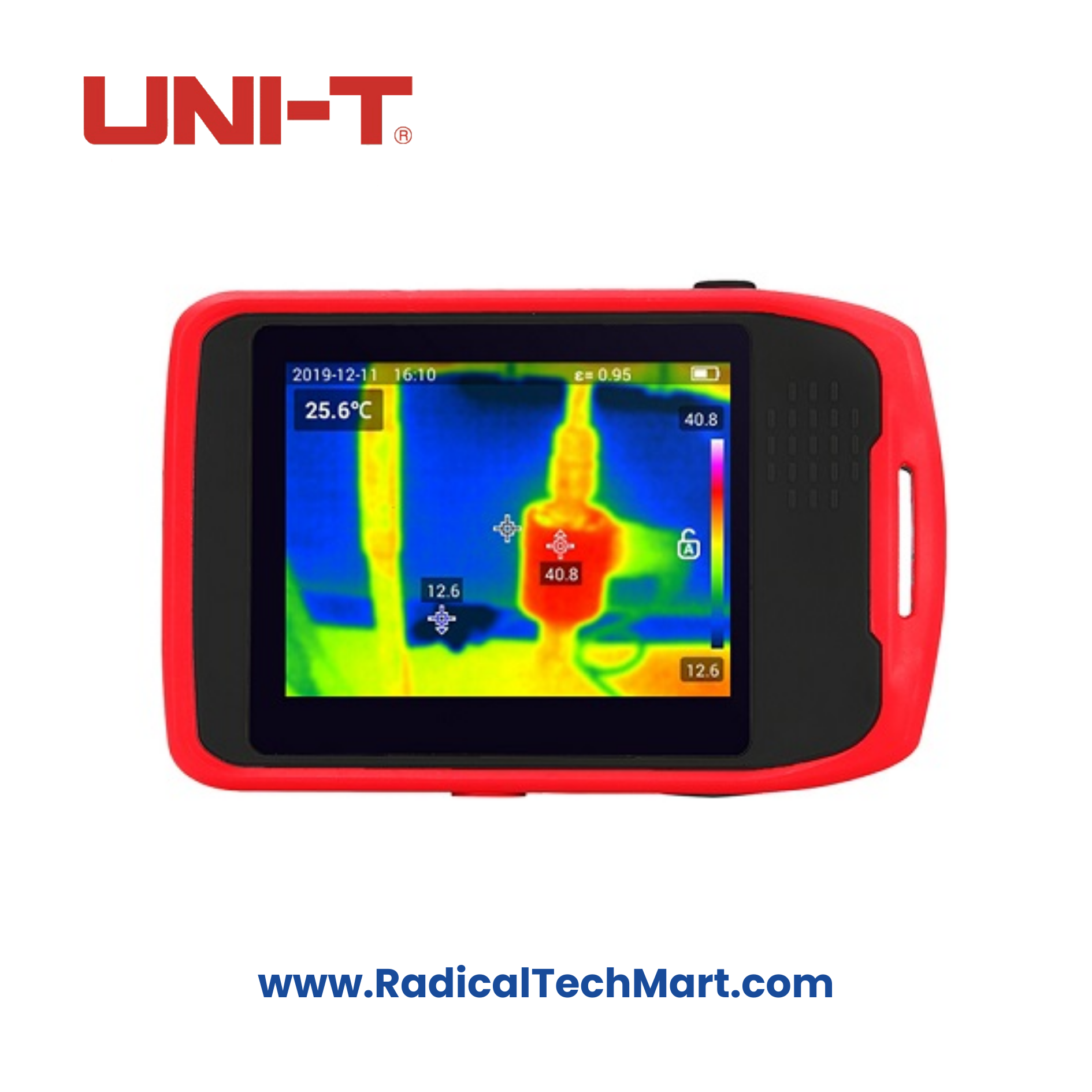

UNI-T UTi120T Pocket-sized Thermal Imaging Camera

Product Summary:
The UNI-T UTi120T is a portable thermal imaging camera designed for quick diagnostics across industrial and commercial environments. With a 120×90 IR resolution, a large 3.5” TFT touch screen, hotspot tracking, and Wi-Fi connectivity, it ensures efficient detection and analysis of thermal issues on the go.

Key Features:

• 3.5” TFT touch screen with 320×240 resolution

• IR resolution: 120×90 pixels

• Temperature range: -20℃ to 400℃

• Auto hot/cold spot tracking

• Hi/Lo temperature alarm

• Multiple image modes: Thermal, Fusion, Visual, PIP

• 640×480 visual camera with 1.0~8x digital zoom

• 6 color palettes including White hot, Ironbow, Arctic

• Built-in LED flashlight

• USB rechargeable Li-ion battery

• IP54 rated, 1m drop proof

• Wi-Fi enabled via UNI-T Mobile App

• 1/4” tripod mountable

• PC software for thermal analysis



Applications:

• Electrical panel and circuit inspection

• Mechanical equipment temperature monitoring

• HVAC and building diagnostics

• Preventive maintenance in industrial plants

• Thermal troubleshooting for field service engineers



Product Benefits:

• Pocket-sized design for easy portability

• Fast, accurate temperature detection

• Real-time data via mobile app

• Easy operation through large touch screen

• Durable for field environments (IP54, drop-proof)

• Continuous zoom for detailed thermal analysis



FAQs:

Q1. What is the temperature range supported by UTi120T?
A1. It supports a wide range from -20℃ to 400℃, suitable for most industrial and building applications.

Q2. Can it connect to a mobile phone for real-time monitoring?
A2. Yes, it supports Wi-Fi connectivity via the UNI-T Mobile App for live viewing and data sync.

Q3. Does this camera support capturing both thermal and visual images?
A3. Yes, it supports Thermal, Fusion, Visual Image, and PIP modes with dual sensor integration.
