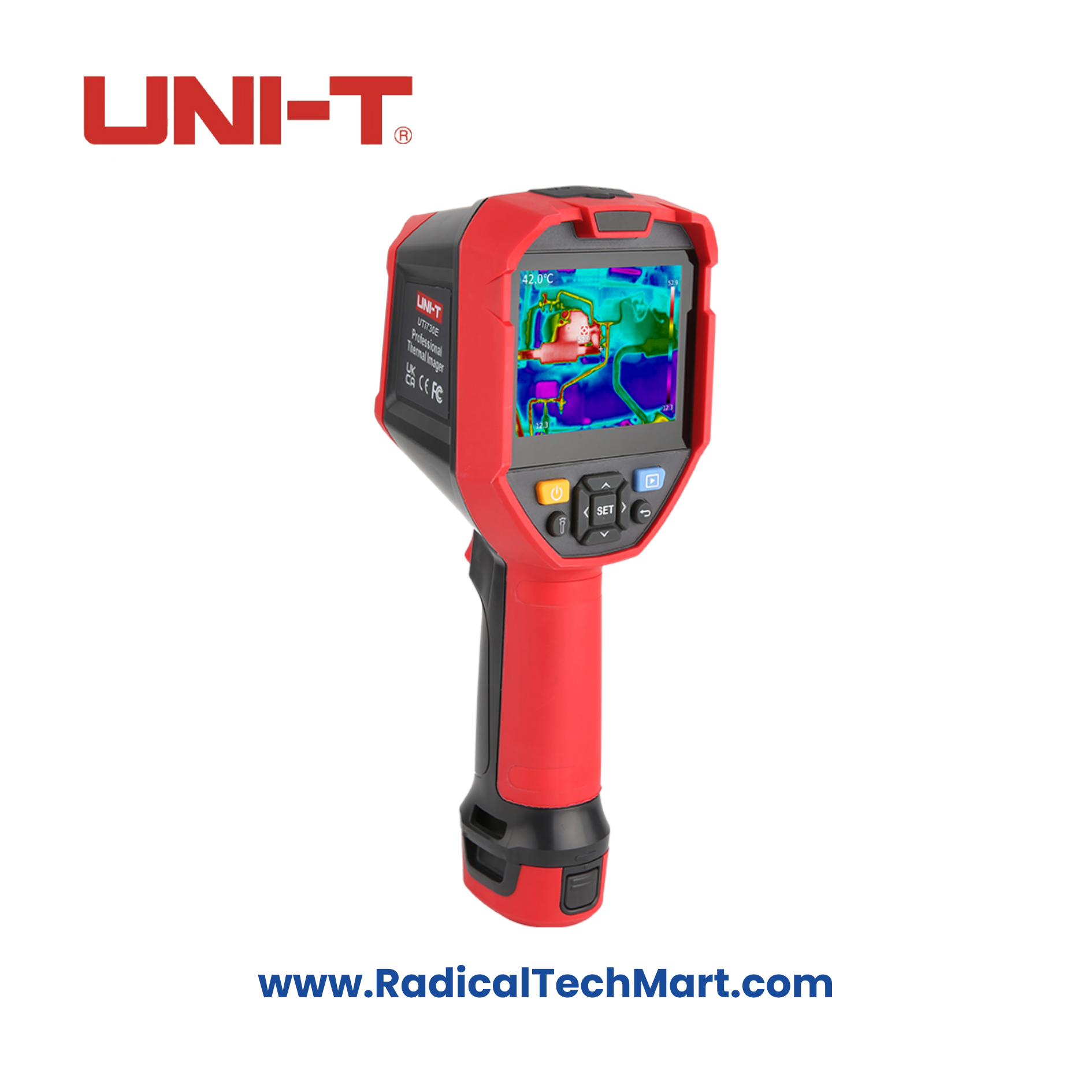

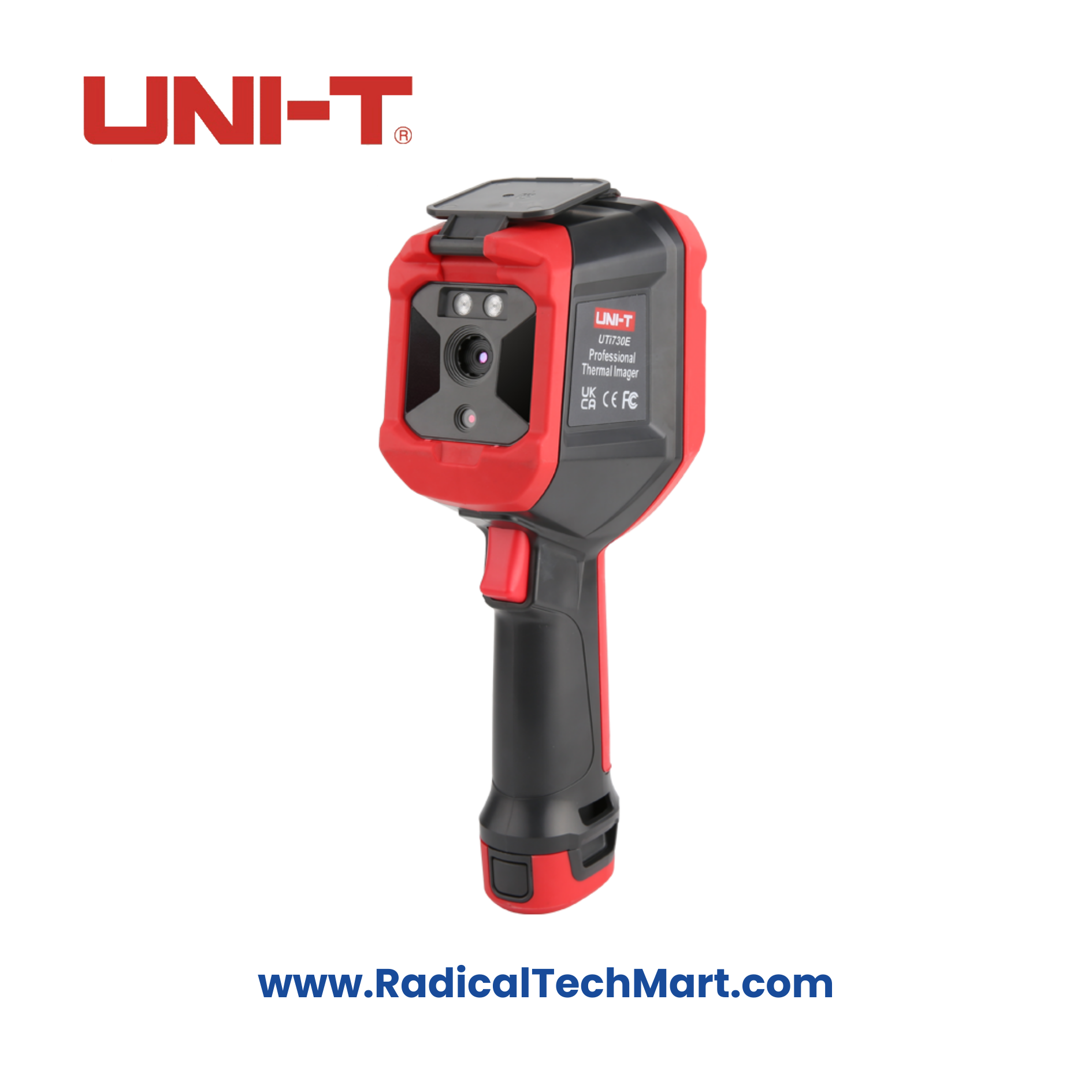

UNI-T UTi730E Enhanced Thermal Camera

Product Summary:
The UNI-T UTi730E is a professional-grade enhanced thermal camera equipped with a 3.5" IPS display, 320×240 thermal resolution, Wi-Fi capability, and image blending functions. Ideal for predictive maintenance, energy audits, HVAC diagnostics, and R&D applications.

Key Features:

• IR resolution: 320×240 pixels

• Display: 3.5” IPS (640×480)

• Temperature range: -40°C to 400°C

• Dual image: Thermal, Visual, Fusion, PIP

• Digital camera: 2MP

• Digital zoom: 2x, 4x

• Wi-Fi app connectivity + PC software

• Replaceable 5200mAh Li-ion battery

• Hi/Lo temperature alarms

• Image analyzer: 5 points, 3 circles, 3 rectangles, 1 line

• IP54-rated and 2m drop resistant



Applications:

• Electrical and mechanical inspection

• HVAC diagnostics and maintenance

• Energy audits and thermal leaks detection

• R&D labs and electronics testing

• Fire safety assessments

• Industrial predictive maintenance



Product Benefits:

• High-resolution thermal imagery for accurate diagnostics

• Fast on-site analysis with built-in visual overlays

• Portability with detachable battery for longer use

• Integrated Wi-Fi for real-time monitoring and data sharing

• Robust design suitable for harsh industrial environments



FAQs

Q1: What is the maximum temperature it can measure?
A1: The UTi730E can measure temperatures up to 400°C (752°F), ideal for industrial and electrical inspections.

Q2: Can I save and analyze data later?
A2: Yes, the device includes a 16GB micro SD card and supports PC software for image and temperature analysis.

Q3: Does it work with a mobile app?
A3: Yes, it connects via Wi-Fi to a mobile app for image transfer, viewing, and photo management using QR code features.
