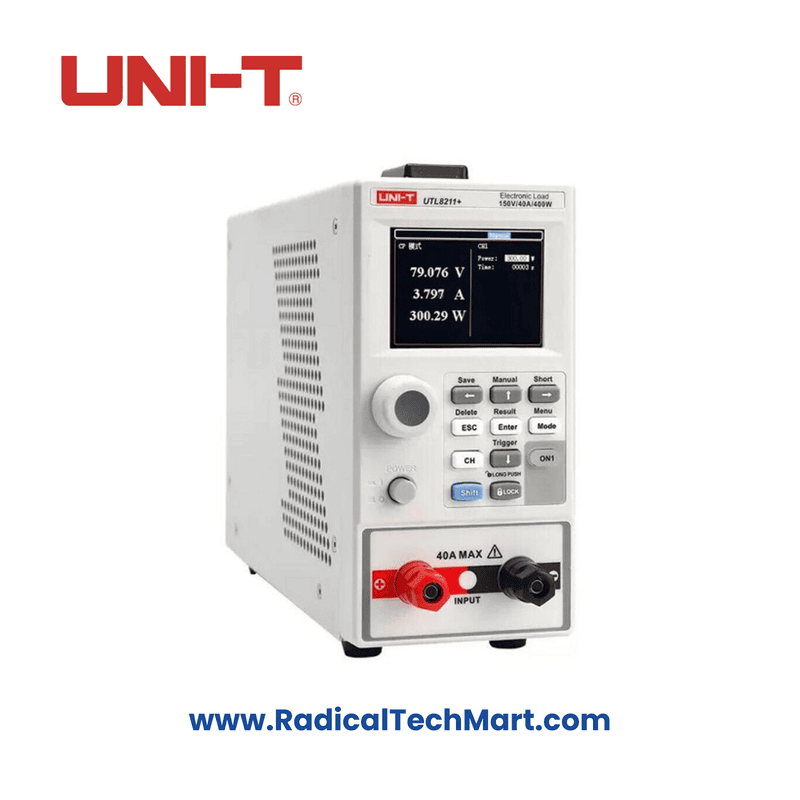

Uni-T UTL8211+ High-Precision DC Electronic Load
400W high-precision single-channel DC electronic load with 1mV/1mA resolution, ideal for battery, charger, and power supply testing.
Download Now ↓↓
Customize
Share :
Product Summary:
The Uni-T UTL8211+ is a compact and high-precision DC electronic load with 400W power handling, designed for accurate testing of power supplies, batteries, and electronic components. With a 2.8" LCD, SCPI protocol support, and intelligent protections, it's a reliable tool for R&D and production lines.
Key Features:
2.8-inch 24-bit true color LCD display
Single channel: 150V / 40A / 400W
High resolution: 1mV / 1mA
4 basic test modes: CC, CV, CR, CP
Dynamic current test up to 5kHz
Programmable rise/fall rate
Battery discharge & short-circuit simulation
Remote monitoring via RS232 and SCPI
Over-voltage, over-current, reverse polarity protection
Smart fan system with power-off memory
Applications:
Power supply and adapter testing
Battery and lithium protection board testing
LED driver and switching power supply evaluation
ATE systems and R&D labs
Production line testing for consumer electronics
Product Benefits:
Precise load simulation with high test resolution
Reduces manual efforts through programmable automation
Protects devices under test with intelligent safeguards
Supports wide range of voltage and current
Easy integration with test software and host systems
FAQs:
Q1: What is the max voltage, current, and power of UTL8211+?
A1: The UTL8211+ supports up to 150V, 40A, and 400W in single-channel mode.
Q2: Can it test lithium-ion batteries?
A2: Yes, it supports multi-mode battery discharge and is suitable for lithium battery testing and protection circuit verification.
Q3: Is it compatible with remote PC control?
A3: Yes, it includes RS232 and supports SCPI protocol for remote operation and monitoring.
