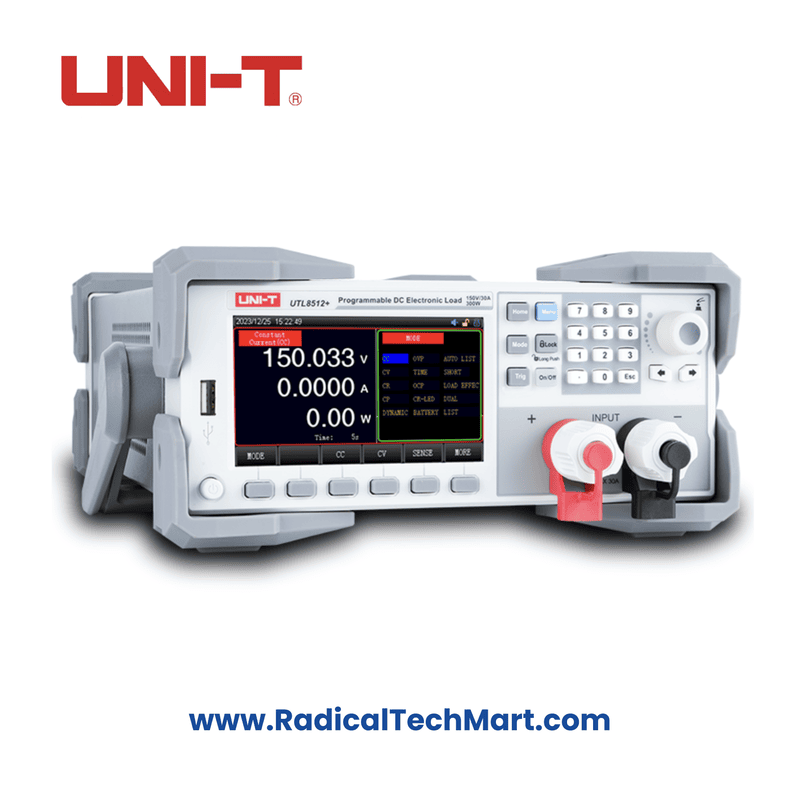

UNI-T UTL8512+ DC Electronic Load – 150V 30A 300W
High-precision programmable DC electronic load with 150V/30A/300W capacity, ideal for advanced power testing and protection features.
Customize
Share :
✅ Product Summary:
The UNI-T UTL8512+ is a high-performance programmable DC electronic load offering 150V, 30A, and 300W capacity. It features a 4.3-inch LCD, multiple test modes, and advanced protection features, making it ideal for labs, R&D, and electronic manufacturing setups.
⚙️ Key Features:
Voltage range: 0–150V, Current: 0–30A, Power: 0–300W
Resolution: 0.1mV / 0.01mA
Modes: CC, CV, CR, CP
Advanced dynamic frequency: up to 50kHz
Multiple protections: OVP, OCP, OPP, OTP, reverse protection
4.3" TFT LCD display
Test modes: Battery test, Short circuit, Load effect, Time test, etc.
Screenshot & list test save functions via USB
RS232 communication interface
Voltage range: 0–150V, Current: 0–30A, Power: 0–300W
Resolution: 0.1mV / 0.01mA
Modes: CC, CV, CR, CP
Advanced dynamic frequency: up to 50kHz
Multiple protections: OVP, OCP, OPP, OTP, reverse protection
4.3" TFT LCD display
Test modes: Battery test, Short circuit, Load effect, Time test, etc.
Screenshot & list test save functions via USB
RS232 communication interface
🛠 Applications:
R&D labs for power supply testing
Battery charging/discharging simulations
Solar panel and DC converter testing
Education & training institutes for electronics
Quality control and aging tests in electronics manufacturing
R&D labs for power supply testing
Battery charging/discharging simulations
Solar panel and DC converter testing
Education & training institutes for electronics
Quality control and aging tests in electronics manufacturing
🎯 Product Benefits:
Fast and flexible testing with dynamic response
Enhanced reliability with multi-protection features
USB-enabled test file saving and quick system upgrades
Intuitive LCD UI for better control and monitoring
Ideal for high-precision testing environments
Fast and flexible testing with dynamic response
Enhanced reliability with multi-protection features
USB-enabled test file saving and quick system upgrades
Intuitive LCD UI for better control and monitoring
Ideal for high-precision testing environments
❓ FAQs:
Q1. What are the primary testing modes available in UTL8512+?
A1. It offers CC, CV, CR, CP modes, along with battery test, OCP/OPP, list, and dynamic tests.
Q2. Does it support USB or remote control functionality?
A2. Yes, it includes RS232 connectivity and USB support for screen capture and firmware upgrades.
Q3. Is this suitable for continuous lab usage?
A3. Absolutely. With a 3-year warranty, dynamic frequency of 50kHz, and advanced safety features, it's designed for regular industrial or lab use.
Q1. What are the primary testing modes available in UTL8512+?
A1. It offers CC, CV, CR, CP modes, along with battery test, OCP/OPP, list, and dynamic tests.
Q2. Does it support USB or remote control functionality?
A2. Yes, it includes RS232 connectivity and USB support for screen capture and firmware upgrades.
Q3. Is this suitable for continuous lab usage?
A3. Absolutely. With a 3-year warranty, dynamic frequency of 50kHz, and advanced safety features, it's designed for regular industrial or lab use.
