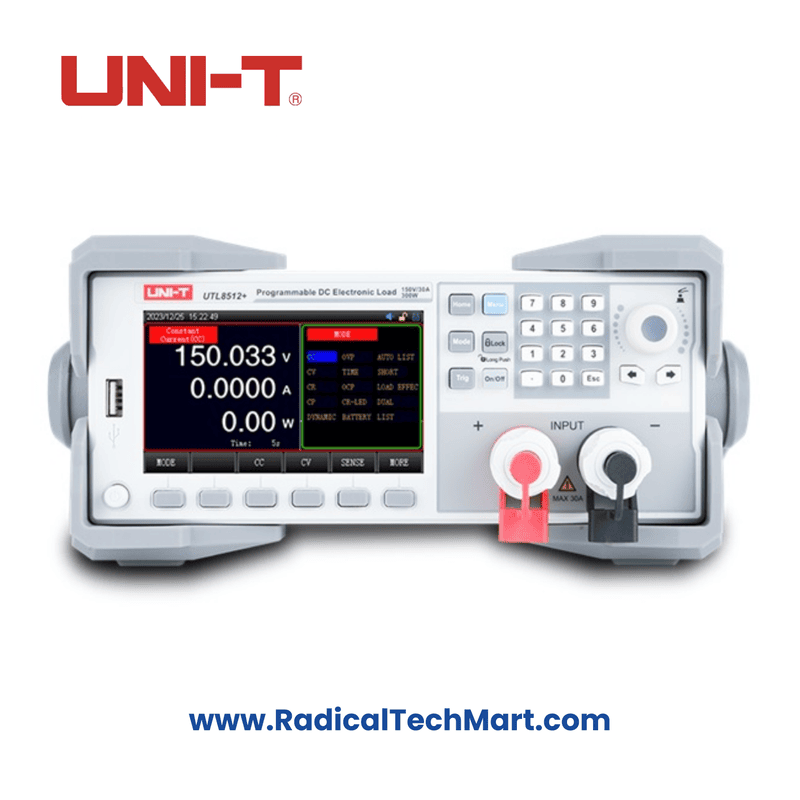

UNI-T UTL8512B+ DC electronic load, 500V 30A
₹65,400.00 ₹71,500.00
Download Now ↓↓
Product Details
The UTL8500+ series DC electronic load is a next-generation, intelligent large-screen device that offers a cost-effective solution for various testing needs. It features:
- Voltage Range: 500V
- Current Range: 30A
- Total Power: 400W
- Resolution: 0.1mV for voltage and 0.01mA for current
- Maximum Dynamic Frequency: 50kHz, with up to 500KHz synchronous sampling and high-performance DSP processing for fast and efficient testing.
- Current Slew Rate: 0.0006A/μS to 3A/μS
- Size: ½ 2U
- Connectivity: RS232
This model is designed to meet the needs of R&D and testing environments, offering intuitive LIST programmable automatic test modes. It also comes with a 3-year warranty for added reliability.
