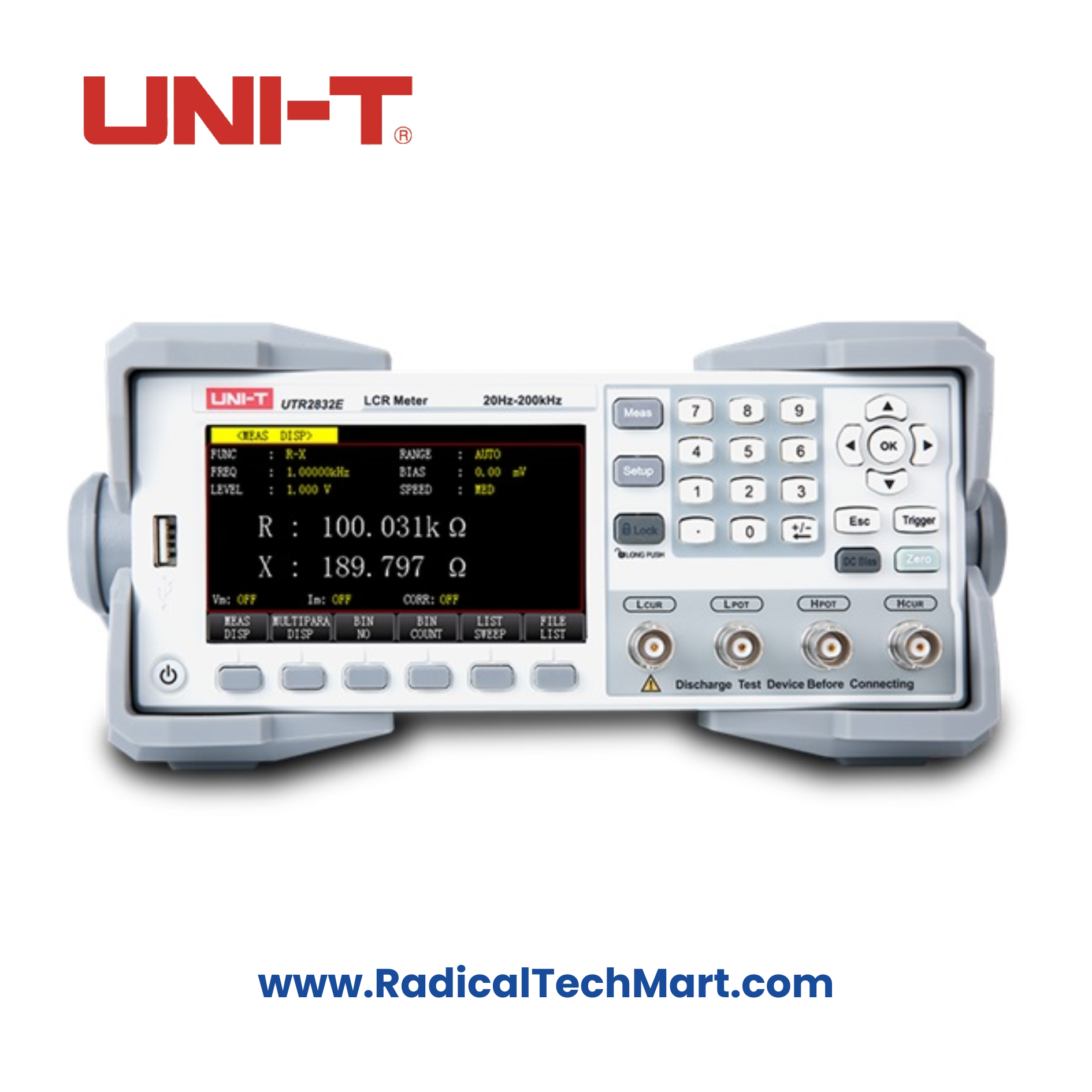

UNI-T UTR2832E LCR Meter – 200KHz
High-precision LCR Meter with 200KHz test frequency, 0.05% accuracy, and multiple connectivity options for lab and industrial applications.
Customize
Share :
Product Summary:
The UNI-T UTR2832E is a high-performance LCR digital bridge designed for precise low-frequency measurements of electronic components. With advanced features like 200KHz test frequency, 4.3" TFT LCD, and multi-interface connectivity, it is ideal for automated production, quality control, and R&D.
Key Features:
Max test frequency: 200KHz
Accuracy: 0.05% (LCRZ), 0.1% (DCR)
Large 4.3" TFT LCD display
Test rate up to 80 readings/sec
Measures |Z|, |Y|, L, C, R, G, DCR, D, Q, Rs, Rp, Rd, X, B, Ө
6-digit display count
Multiple connectivity: RS232, USB Host & Device, LAN, Handler
Compact and user-friendly design
3-year manufacturer warranty
Applications:
Electronic component testing labs
Automated production lines
Quality control departments
Research and development
Incoming material inspection
Product Benefits:
Accurate and stable measurements
Supports advanced component analysis
Boosts testing efficiency with high-speed reading
Seamless integration into automated systems
Long-term reliability with extended warranty
FAQs:
Q1: What types of components can be tested with the UTR2832E LCR meter?
A1: It can test inductance, capacitance, resistance, impedance, DC resistance, and other secondary parameters like Q factor and phase angle.
Q2: Does this LCR meter support computer connectivity for automated testing?
A2: Yes, it supports RS232, USB Host, USB Device, LAN, and Handler interfaces for full system integration.
Q3: What is the display type and how many parameters are shown?
A3: It features a 4.3-inch TFT LCD and displays both primary and secondary parameters simultaneously in large characters.
