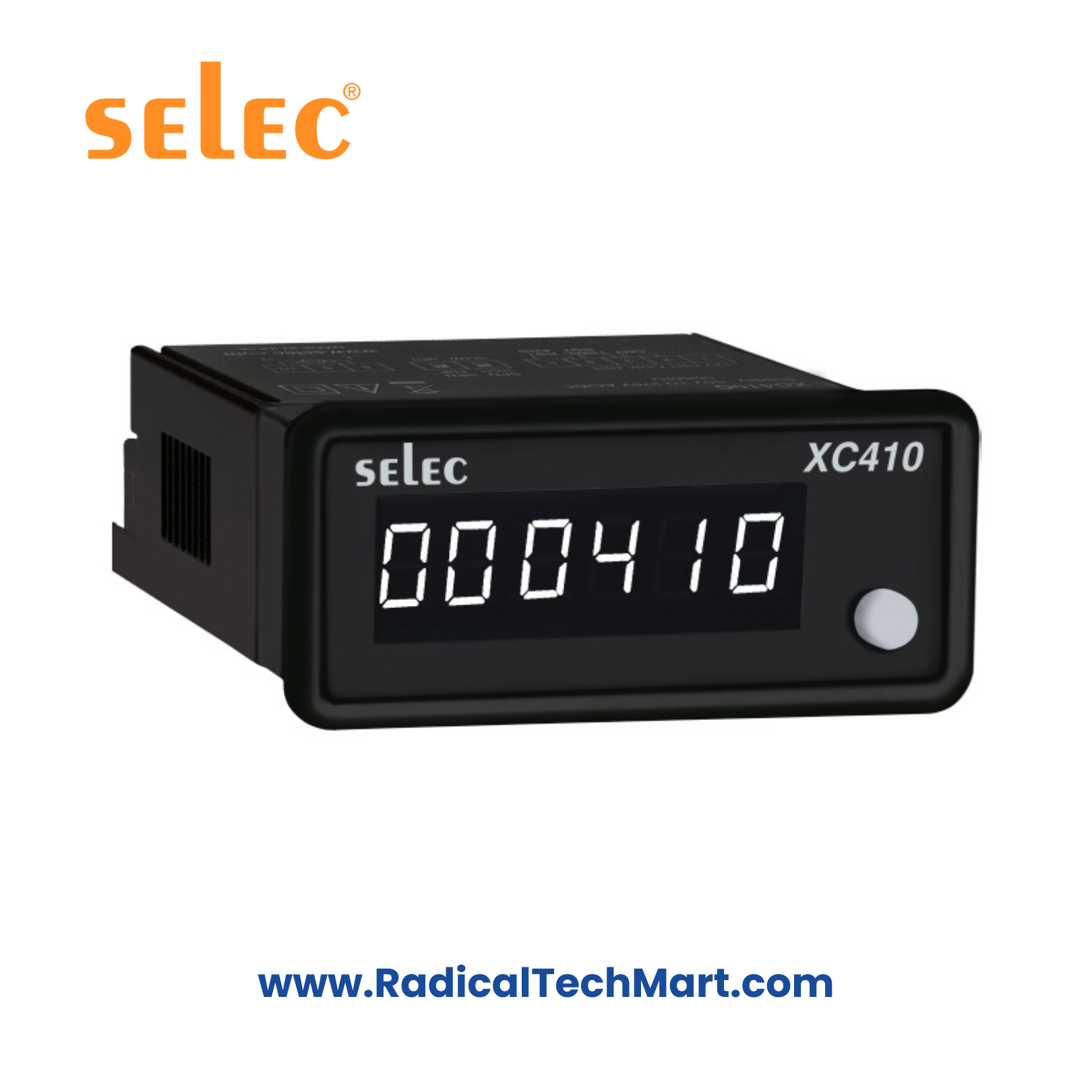

Selec XC410B Count Totaliser – 6 Digit, Universal Supply, 36x72mm
Selec XC410B Digital Counter – 6-Digit LED Totaliser, 36×72 mm, Universal Supply
Compact 6-digit totalizer with 7-segment LED display, NPN/PNP input compatibility, built-in 12V sensor supply, 20 Hz / 5 kHz selectable speed, universal 90–270V AC/DC input, and front/remote reset. Ideal for counting pulses from encoders, proximity switches, and limit switches.
Customize
Share :
The Selec XC410B is a compact 6-digit LED counter designed for industrial applications requiring reliable pulse counting from sensors such as encoders, proximity switches, and limit switches. With selectable 20 Hz / 5 kHz input speed, inbuilt 12V sensor supply, universal 90–270V AC/DC input, and front or remote reset options, it offers a robust and flexible solution for machine automation and process monitoring.
Key Features
6-digit, 0.30" bright red LED display
Compact 36×72 mm panel size
Wide counting range: 0 to 999999
Compatible with NPN & PNP sensors
Input speed modes: 20 Hz (slow) or 5 kHz (high-speed)
Accepts signals from proximity switches, encoders, potential-free contacts, limit switches
Inbuilt 12V DC / 60 mA sensor supply (external supply required if load >60 mA)
Front & remote reset options
Non-volatile memory retention
Universal supply: 90–270V AC/DC @ 50/60 Hz
Panel mounting with 29×71 mm cutout
IP20 rated, 0–50°C operation
Technical Specifications
Display
| Parameter | Value |
|---|---|
| Display Type | 6-digit, 0.30" red 7-segment LED |
| Range | 0–999999 counts |
Input Specifications
| Parameter | Value |
|---|---|
| Sensor Type | NPN / PNP compatible |
| Input Signal | 5–30V DC from proximity switches, encoders, limit switches, etc. |
| Input Speed | 20 Hz (slow) or 5 kHz (high speed) |
Output / Reset
| Parameter | Value |
|---|---|
| Reset | Front panel / Remote reset |
| Counting Direction | Up |
| Memory Retention | Yes |
Sensor Supply
| Parameter | Value |
|---|---|
| Supply | 12V DC @ 60 mA (max) |
Environmental
| Parameter | Value |
|---|---|
| Operating Temp | 0 to 50°C |
| Storage Temp | –20 to 75°C |
| Humidity | 95% RH |
| Protection | IP20 |
Mechanical
| Parameter | Value |
|---|---|
| Panel Cutout | 29 × 71 mm |
| Dimensions | 76 × 34.5 × 67.5 mm |
| Weight | 85 g |
Applications
Production & piece counting
Conveyor part counting
Machine cycle counting
Encoder pulse monitoring
Proximity switch pulse counting
Packaging and batch control
Industrial automation panels
What’s in the Box?
XC410B Digital Counter
Mounting clamps
User manual
Warranty card
FAQs
Q1. Can the XC410B work with both NPN and PNP sensors?
Yes, it supports both NPN & PNP signals.
Q2. Does it support high-speed counting?
Yes—5 kHz high-speed input mode is available.
Q3. Is the supply voltage universal?
Yes—90 to 270V AC/DC, 50/60 Hz.
Q4. Does memory retain counts after power loss?
Yes—memory retention is provided.
Q5. Is there an inbuilt sensor power supply?
Yes—12V DC @ 60 mA. Use external supply if load >60 mA.
Q6. What reset options are available?
Front panel reset & remote reset inputs.
