Advanced Static VAR Generator, 100 kVAr

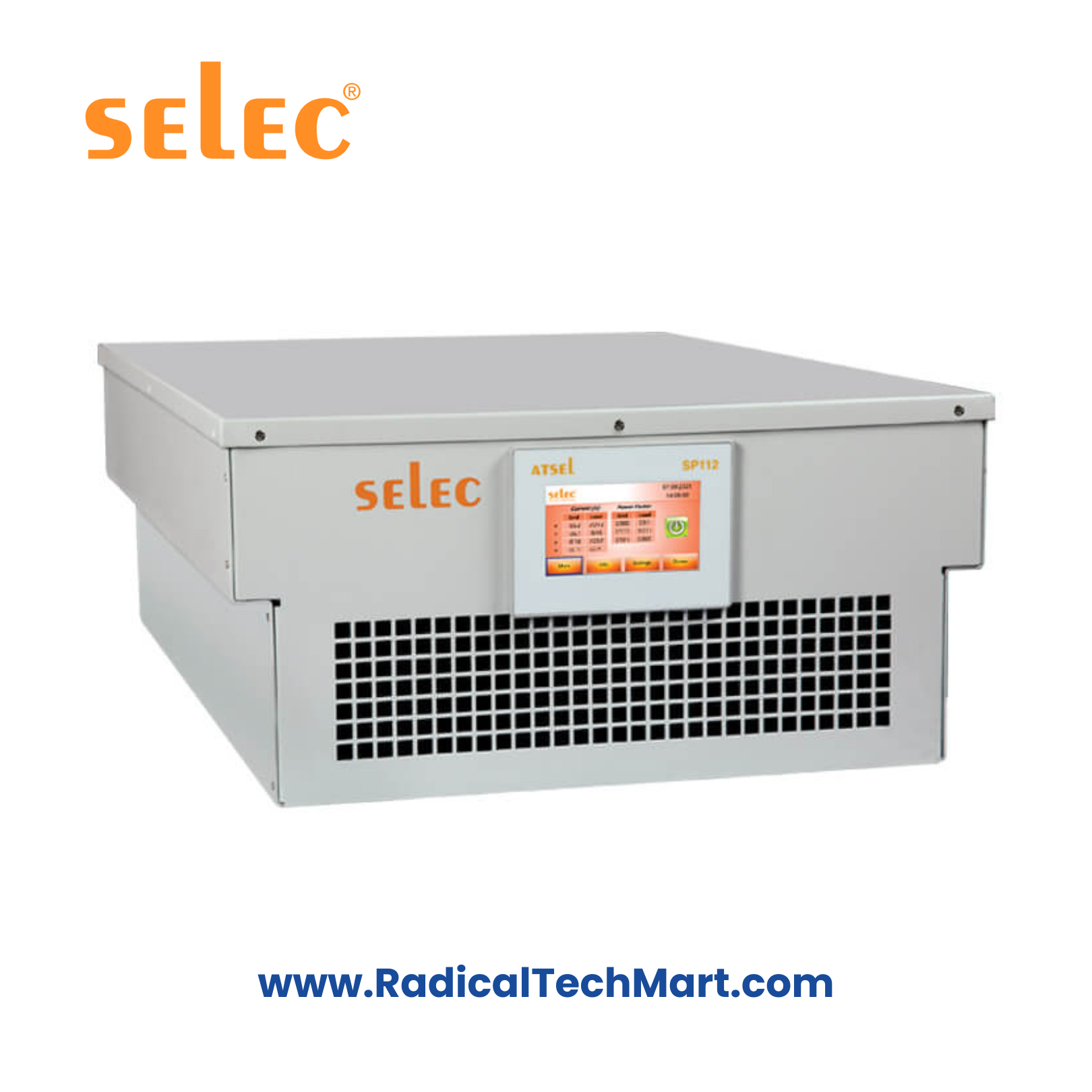

Selec ASVG-100 Advanced Static Var Generator, 100 kVAR
Industrial-grade Static Var Generator (SVG) delivering fast, stepless reactive power compensation, harmonic mitigation up to 15th order, and real-time power quality correction for 3-phase electrical systems.
Customize
Share :
The Selec ASVG-100 Advanced Static Var Generator is a high-performance SVG designed for dynamic, stepless reactive power compensation, harmonic mitigation up to the 15th order, and real-time power quality correction. With a <50 µs response time and 3-level IGBT technology, it delivers superior correction for industrial, commercial, and utility networks.
Key Features
Real-time dynamic stepless compensation
Instant response <50 μs; full correction in <1 cycle
Mitigates both capacitive & inductive reactive loads
Harmonic correction up to 15th order
Power factor adjustable from –1 to +1
RS-485 communication (Modbus-RTU, optional Ethernet/Wi-Fi)
Modular operation—parallel up to 8 modules
Forced air cooling for efficient thermal performance
Compatible with conventional capacitor banks
Multiple protections: over-voltage, over-current, IGBT faults, surge, EEPROM fault, CT detection fault
Easy wall/rack mounting
TECHNICAL SPECIFICATIONS TABLE
Electrical Parameters
Parameter Specification Rated Capacity 100 kVAR Operating Voltage (P-N) 178–262 V Line-to-Line Voltage 308–450V Frequency 50/60 Hz (±2.5 Hz) Power Efficiency >97% Compensation Efficiency >98% Grid Structure 3P3W / 3P4W CT Ratio Adjustable up to 10000/5A CT Location Load side (default) / grid side Rated RMS Current 140A Harmonic Mitigation Up to 15th order Overall Response Time < 5 ms Control Topology 3-level IGBT inverter topology Performance
Parameter Specification Response Time <50 µs Target PF –1 to +1 (settable) Noise Level <65 dB Cooling Forced air Operating Modes PF correction, Harmonic mitigation, Load balancing Environment & Mechanical
Parameter Specification Operating Temperature –10°C to 45°C Humidity 95% RH, non-condensing Altitude <2000 m Protection Class IP20 Dimensions 571 × 236 × 858 mm Mounting Wall/Rack mount Communication RS485 (default); Ethernet/Wi-Fi optional Display 4.3" HMI APPLICATIONS
Industrial power factor correction
Harmonic mitigation in manufacturing plants
Commercial buildings & malls
Data centers & IT infrastructure
HVAC and large motor loads
Utility power quality improvement
Replacement/upgrade to capacitor bank systems
WHAT’S IN THE BOX
ASVG-100 Static Var Generator
Mounting hardware
User manual & wiring guide
RS-485 communication terminals
Safety & installation instructions
FAQ
1) Does the ASVG-100 replace capacitor banks?
Yes, it can work standalone or in combination with existing banks.2) Does it correct both leading and lagging reactive power?
Yes—dynamic capacitive & inductive compensation.3) Can it perform harmonic mitigation?
Yes, up to the 15th harmonic order.4) What communication protocols are supported?
Modbus-RTU (RS-485); Modbus TCP/IP via optional Ethernet module.5) Does it require MCCB/ACB?
Yes—external incomer protection is mandatory.6) Can multiple ASVGs run in parallel?
Up to 8 modules can be paralleled.
