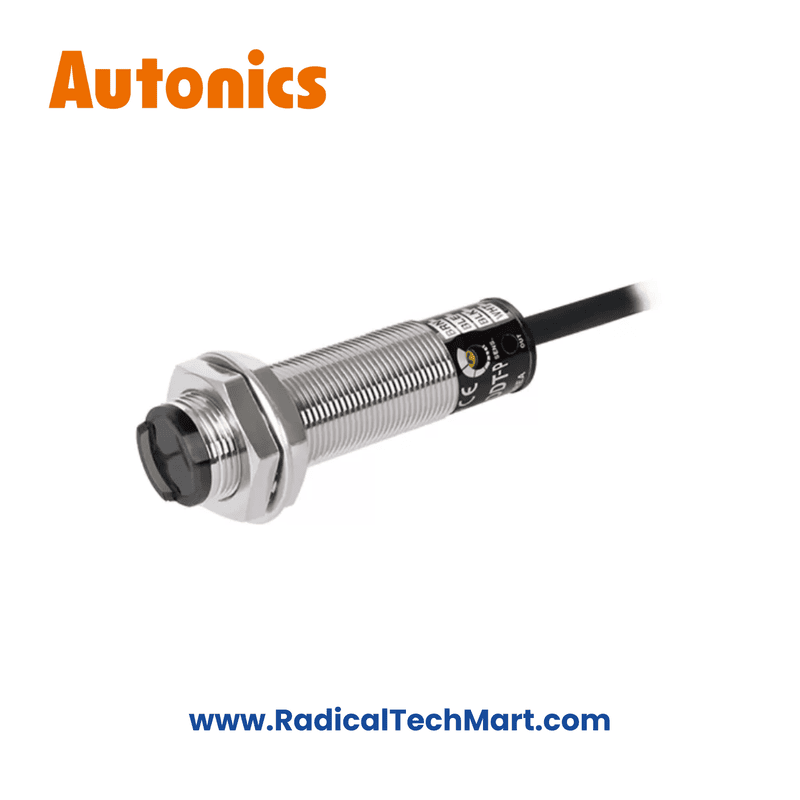

The Autonics BR100-DDT-P is a diffuse reflective photoelectric sensor from the BR Series, featuring a compact M18 cylindrical design. With a 100 mm sensing distance, PNP output, and IP66 protection, it provides stable detection of opaque and translucent objects in demanding industrial environments.

Key Features

• Diffuse reflective sensing type

• Sensing distance: 100 mm

• PNP open-collector output

• Light-ON / Dark-ON selectable via control wire

• Built-in sensitivity adjuster

• Fast response time ≤ 1 ms

• High noise immunity with digital signal processing

• Reverse polarity & output short-circuit protection

• IP66 protection rating

• Cylindrical M18 metal body (nickel-plated brass)

Technical Specifications

Applications

• Conveyor object detection

• Packaging & bottling machines

• Part presence sensing

• OEM automation equipment

• General factory automation

What’s in the Box?

• Autonics BR100-DDT-P Photoelectric Sensor

• M18 fixing nuts (×2)

• Washer

• Adjustment screwdriver

• Instruction manual

FAQ

Q1. What type of sensing does BR100-DDT-P use?
Diffuse reflective sensing (no reflector required).

Q2. What is the maximum sensing distance?
Up to 100 mm with a standard non-glossy white target.

Q3. Is this NPN or PNP output?
This model has PNP open-collector output.

Q4. Can Light-ON / Dark-ON be changed?
Yes, selectable via the control wire.

Q5. Is it suitable for industrial environments?
Yes, it has IP66 protection and a metal housing.
