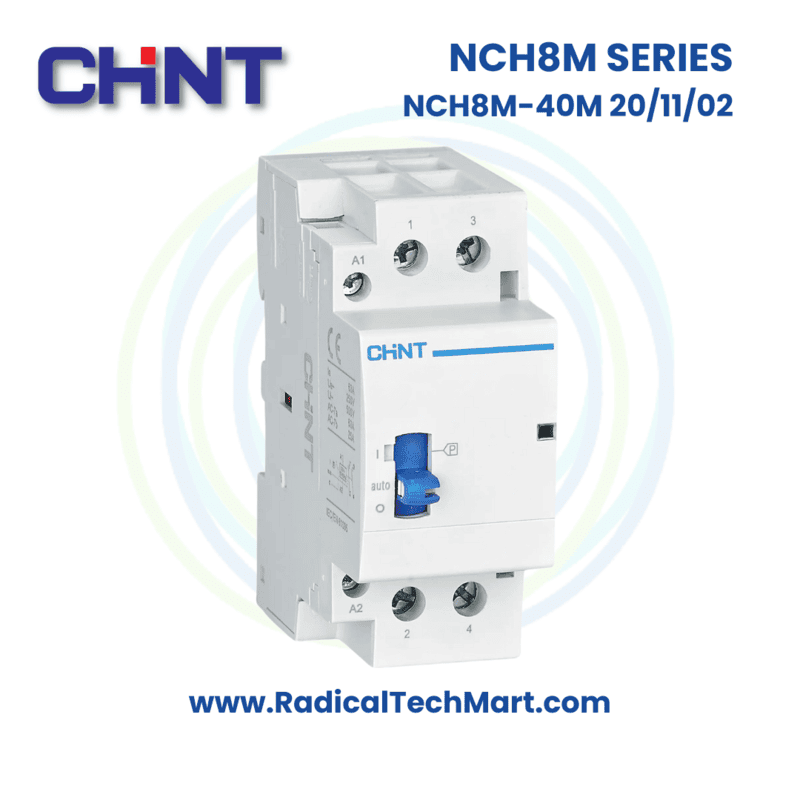

Chint NCH8-40M 20/11/02 Contactor

Product Summary:
The Chint NCH8-40M 20/11/02 is a high-performance modular AC contactor, engineered for safe and efficient circuit control in both home and industrial environments. It meets IEC/EN 60947-4-1 standards and supports a wide voltage and current range.

Key Features:

• Rated Control Voltage: 230V AC

• Contact Configuration: 2 NO

• Rated Current: 40A

• Modular design with DIN rail mounting

• Operating Temperature: -25°C to +70°C

• Protection Class: IP20

• Conforms to IEC/EN 60947-4-1

• 50Hz/60Hz operating frequency

• Reliable for low-inductive loads

• Compact and easy-to-install

Applications:

• Residential circuit control

• Industrial switching systems

• HVAC equipment

• Resistance furnace control

• Domestic appliances

• Power distribution systems

Product Benefits:

• Safe and efficient switching solution

• Easy installation on DIN rails

• Long-lasting and maintenance-free

• Ideal for remote or manual circuit control

• Suitable for both AC-7a and AC-7b categories

• Supports multiple operating temperatures

• Optimized for non-inductive/low-inductive loads

FAQ:

Q1: Can this contactor be used for motor starting applications?
A1: No, it is best suited for non-inductive or slightly inductive loads like lighting, heating, or appliances.

Q2: Is this contactor compatible with 3-phase systems?
A2: It is a single-phase device rated at 230V AC. For 3-phase systems, consider other Chint models.

Q3: Does this contactor provide short-circuit protection?
A3: No, it must be used with a separate short-circuit protection device like an MCB.
