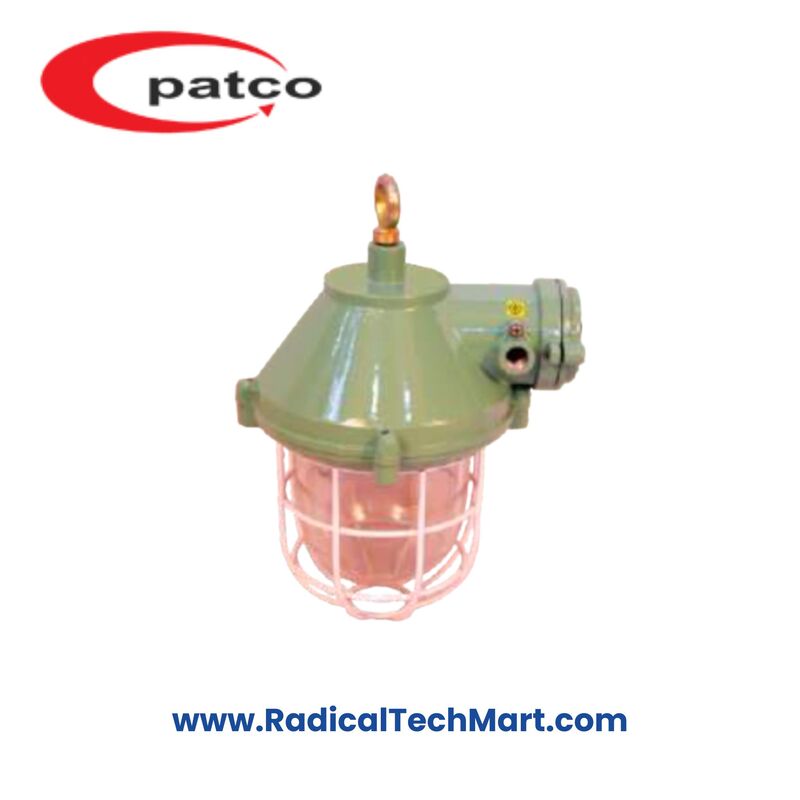

LED Flameproof Well Glass – 30W / 45W / 60W

Product Summary:
The Patco LED Flameproof Well Glass is available in 30W, 45W, and 60W variants, designed for maximum performance and safety in Zone 1 & Zone 2 hazardous areas. With a durable aluminum body, high lumen output, and certified LED components, it ensures reliable illumination in explosive environments.

Key Features:

• Available in 30W, 45W, and 60W Lumileds COB (Single Lamp)

• Lumen Output (30W–60W): 5160 to 8370 lumens

• Lumen Efficacy: Up to 155 lm/W

• Input Voltage: 230V AC, 50Hz

• Power Factor: > 0.90, Class C

• IP66-rated ingress protection

• Light Spreading Angle: 120° (30W/45W), 180° (60W)

• CMRI Certified with LM70, LM80, and Photo Bio. Test

• 2 Years warranty including FLUX / CCT / CRI

• Surge Protection: L-N 2KV

• Starting Time: Rapid (0.2 Sec)

• LED Life: Minimum 1,00,000 hours

• Durable heat sink made of LM-06 Aluminum Extrusion

• Polycarbonate and toughened glass secondary optics

Application:

• Oil & Gas Refineries

• Petrochemical Industries

• Chemical Processing Units

• Paint Shops and Hazardous Work Areas

• Explosive Manufacturing Facilities

• Power Plants and Substations

Product Benefits:

• One solution with multiple wattage options (30W, 45W, 60W)

• Safe for use in highly explosive environments (Zone 1 & 2)

• Excellent heat management ensures longer fixture life

• Energy efficient with high lumen output

• Maintenance-free operation and superior optics

• CMRI certified for safety and reliability

FAQs:

Q1. Can I use this LED well glass fixture in flammable gas zones?
Yes, it is designed and certified for use in Zone 1 & Zone 2 hazardous gas environments.

Q2. What are the wattage options and their lumen output?
The fixture comes in 30W, 45W, and 60W options with lumens ranging from 5160 to 8370 based on the wattage.

Q3. How does this fixture ensure safety in industrial environments?
It features IP66 protection, surge protection, short-circuit/over-temp protection, and is CMRI certified for hazardous area compliance.
