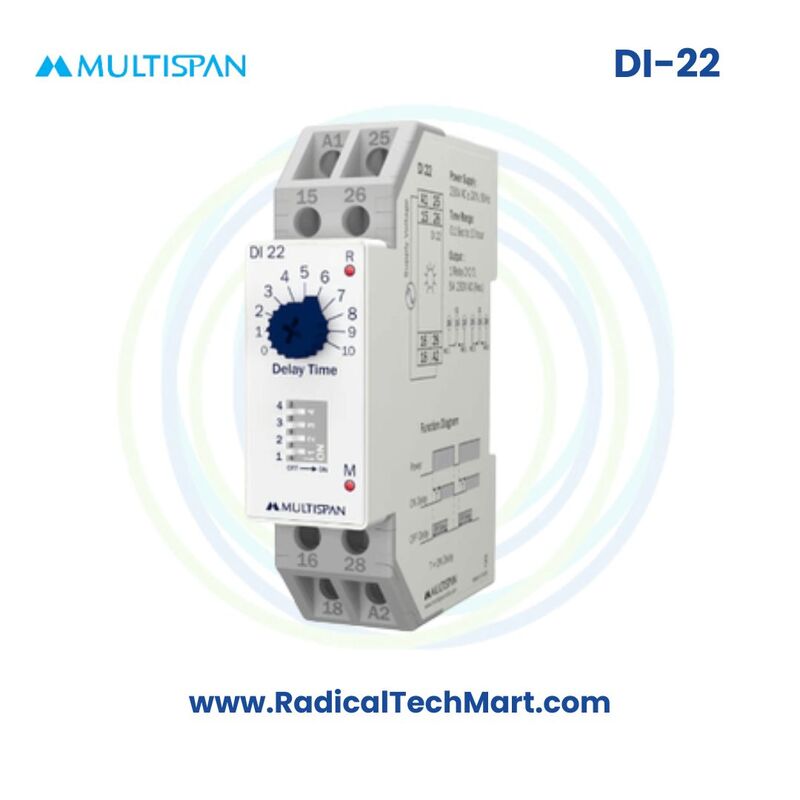

Multispan DI-22 ON/OFF Delay Timer – DIN Rail Industrial Timing Relay
A compact DIN-rail ON delay & OFF delay timer with relay output, adjustable timing range, and reliable switching for motors, conveyors, lighting, and automation control panels.
Customize
Share :
The Multispan DI-22 is a compact ON and OFF delay timer designed for accurate timing control in industrial automation and machine panels. With DIN rail compatibility, relay output, and adjustable delay settings, it offers robust and reliable timing logic for motors, conveyors, lighting, and OEM machinery.
Key Features
Dual Timing Modes: ON delay + OFF delay in one device
DIN Rail Mounting: Quick installation in control panels
Relay Output: NO/NC contacts for flexible control
Power Supply Options: 230V AC or universal supply (model dependent)
Adjustable Delay Range: Typical settings up to 30 or 60 seconds
LED Indications: Status and relay operation indicators
Compact, Lightweight Design
Stable Performance: Maintains timing accuracy under voltage fluctuations
Industrial Durability: Suited for continuous-duty automation
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Model | Multispan DI-22 |
| Timer Type | ON Delay & OFF Delay |
| Output | Relay (NO/NC terminals) |
| Contact Rating | 5A at 230V AC (resistive) |
| Supply Voltage | 230V AC or 110–270V AC/DC (variant-specific) |
| Time Range | Model dependent (commonly 0–30 s or 0–60 s) |
| Indicators | Power LED, Output status LED |
| Mounting | 35 mm DIN Rail/Panel |
| Enclosure | ABS housing |
| Operating Frequency | 50/60 Hz |
| Environment | Industrial panel installation |
Applications
Motor start/stop delay
Pump & fan delay control
Conveyor sequencing
Lighting delay control
Process control panels
OEM machine automation timing
Safety interlock delays
What’s in the Box?
1 × Multispan DI-22 Delay Timer
User instruction sheet
Integrated DIN rail clip
Warranty documentation
FAQ
Q1. What functions does the DI-22 timer support?
It provides both ON delay and OFF delay, allowing controlled timing for startup and shutdown operations.
Q2. Can it be DIN rail mounted?
Yes, it supports 35 mm DIN rail mounting for quick panel integration.
Q3. Is the time adjustable?
Yes, depending on the model, the delay is typically adjustable up to 30 or 60 seconds.
Q4. What kind of output does it provide?
A relay output with NO and NC contacts for integration with control circuits.
Q5. Where is it commonly used?
In motor control panels, conveyors, pump systems, lighting circuits, and OEM automation logic.
Q6. Does it support universal supply?
Some variants support 110–270V AC/DC; confirm based on the selected model.
