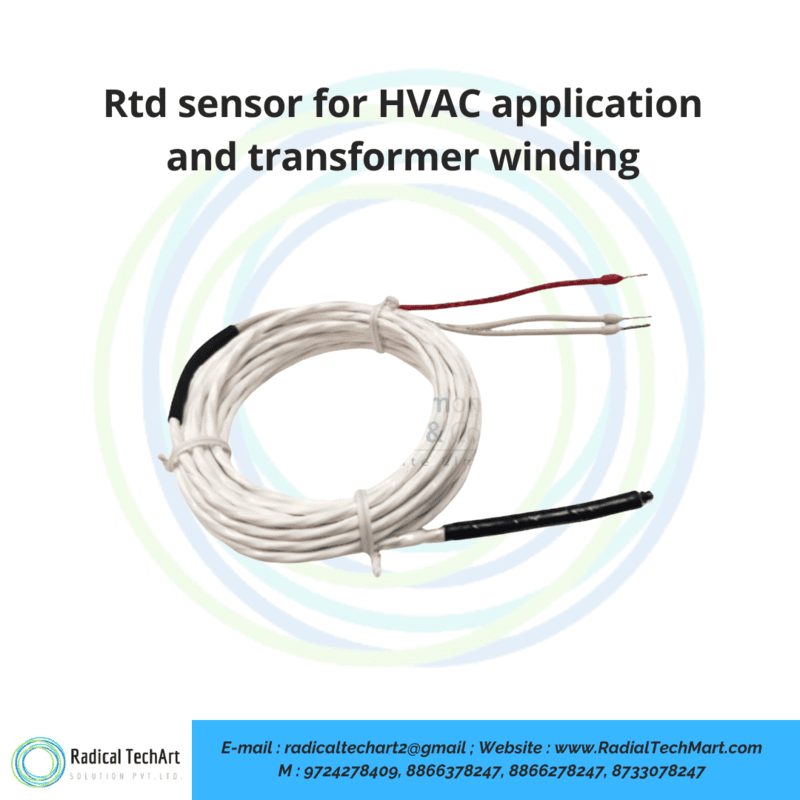

Rtd sensor for HVAC application and transformer winding
Element | Pt 100 ( Simplex ) |
Temperature Range | -50 to 180 °C |
Di-electric Strength | 2KVAC |
Wire Insulation | Teflon / Teflon |
Wire Length | 1 mtr to 10 mtr |
Accuracy | class B As per IEC-60751 |
₹0.00 ₹0.00
Customize
Add Note
Share :
Product Details
- When selecting an RTD (Resistance Temperature Detector) sensor for both HVAC applications and transformer winding temperature monitoring, there are some key considerations to keep in mind:
- Temperature range: Both HVAC systems and transformer windings can operate at different temperature ranges. It’s important to choose an RTD sensor that can accurately measure temperatures within the expected temperature range of both applications. Consider the minimum and maximum temperatures that the RTD sensor needs to measure for both HVAC and transformer winding applications to ensure accurate temperature readings.
- Sensitivity and accuracy: The sensitivity and accuracy of the RTD sensor are crucial in both HVAC and transformer winding applications. Look for RTD sensors with high sensitivity and accuracy, expressed as a percentage of the temperature range, to ensure precise temperature monitoring and control in both applications.
- Mechanical design: The mechanical design of the RTD sensor should be suitable for both HVAC and transformer winding applications. Consider factors such as sensor size, probe length, and mounting options to ensure proper installation and compatibility with both HVAC systems and transformer winding designs.
- Environmental considerations: Both HVAC systems and transformer windings can be exposed to different environmental conditions, such as moisture, dust, and chemicals. Choose an RTD sensor that is designed to withstand the specific environmental conditions of both applications, such as having appropriate ingress protection (IP) ratings, and being resistant to corrosion and other environmental hazards.
- Wiring configuration: RTD sensors for both HVAC and transformer winding applications can be wired in different configurations, such as 2-wire, 3-wire, or 4-wire. Consider the wiring requirements of both applications and choose an RTD sensor with the appropriate wiring configuration for your specific needs.
- Electrical compatibility: Ensure that the RTD sensor is electrically compatible with both the HVAC system and transformer winding measurement systems, including the input impedance, excitation current, and lead wire resistance. This will ensure accurate and reliable temperature measurements in both applications.
- Calibration and certification: For critical applications where accuracy is crucial, it’s important to consider RTD sensors that are calibrated and certified to meet industry standards, such as ASTM E1137 or IEC 60751, to ensure reliable and accurate temperature measurements in both HVAC and transformer winding applications.
- Budget considerations: Consider your budget when selecting an RTD sensor for both HVAC and transformer winding applications, as prices can vary depending on the features, accuracy, and quality of the sensor. Balance the cost with the required performance and reliability for your specific applications.
- By carefully considering these factors, you can select an appropriate RTD sensor for both HVAC and transformer winding applications that provides accurate and reliable temperature measurements, contributing to the efficient and safe operation of both systems. It’s also recommended to consult with experienced engineers or professionals familiar with both HVAC and transformer temperature monitoring to ensure the best choice for your specific applications.
