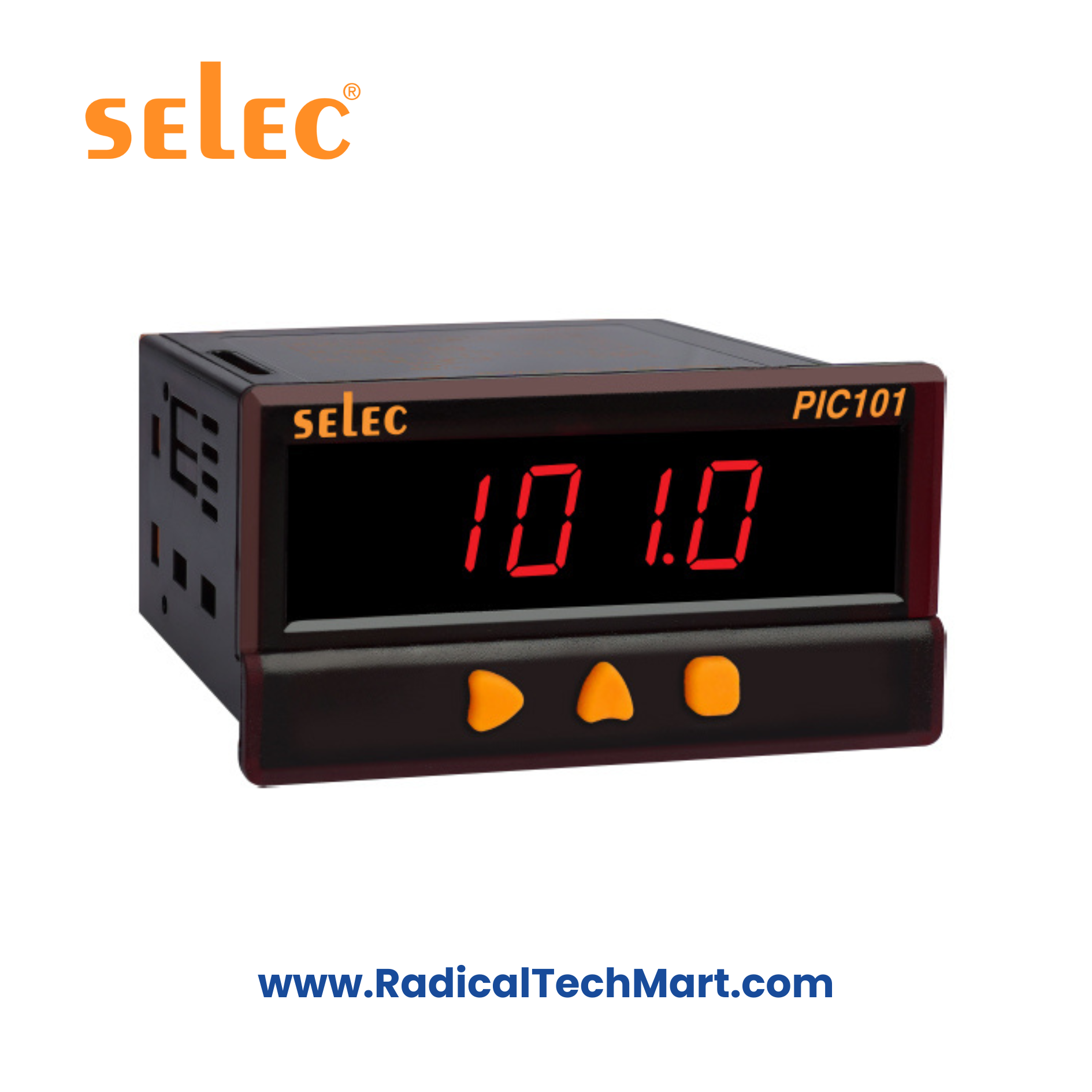

The Selec PIC101N is a basic yet highly reliable universal process indicator designed for monitoring temperature, pressure, flow, level, and general analog signals. It features a bright 4-digit display, universal input capability, a 24V sensor supply for transmitters, scalable analog indication, and support for AC/DC and 24V supplies.

KEY FEATURES

• 4-digit, 7-segment LED single display (12.7 mm height)

• Universal input: TC (J, K, T, R, S), RTD PT100, analog (0–56 mV, 0–10 V, 0/4–20 mA)

• 24V DC sensor supply (30 mA)

• °C/°F selectable temperature indication

• Scalable analog indication (0.001 to 1 resolution)

• 90–270 VAC/DC wide-range supply; 24V DC optional

• Compact 48×96 mm panel size

• Basic fail-safe and alarm capabilities through relay (varies with panel setup)


TECHNICAL SPECIFICATIONS

Display Specifications

Parameter	Value
Display	4-digit, 7-segment LED
Height	12.7 mm
Temperature Unit	°C / °F selectable

Input Specifications

Parameter	Value
Thermocouple	J, K, T, R, S
RTD	PT100 (3-wire)
Analog Inputs	0–56 mV, 0–10 V, 0/4–20 mA
Resolution	1/0.1° for TC/RTD; 1/0.1/0.01/0.001 for analog
Accuracy	0.25% of span ±1°C after 20 min warm-up

Output / Sensor Supply

Parameter	Value
Sensor Supply	24V DC, 30 mA (built-in)
Output Type	(Process indication only; no relay output in PIC101N)

Electrical Specifications

Parameter	Value
Supply Voltage	90–270 VAC/DC (50/60 Hz); Optional 24V DC
Power Consumption	5 VA max @ 230 VAC

Mechanical Specifications

Parameter	Value
Panel Size	48 × 96 mm
Overall Dimensions	97.5 × 50 × 88 mm
Panel Cutout	92 × 46 mm
Weight	250 g
Mounting	Panel mount

Compliance

Meets IEC 61326-1 EMC standards:

• ESD immunity (IEC 61000-4-2)

• Surge immunity (IEC 61000-4-5)

• Radiated & conducted susceptibility (IEC 61000-4-3 / -4-6)

• Voltage dips/interruptions (IEC 61000-4-11)

• Conducted & radiated emissions (CISPR-11)

• EFT / Burst immunity (IEC 61000-4-4)


APPLICATIONS

• Temperature indication (TC/RTD)

• 4–20 mA transmitter display (pressure, flow, level, humidity sensors)

• Machine status indication

• Industrial control panels

• Test benches

• HVAC process monitoring

WHAT’S IN THE BOX

• PIC101N process indicator

• Panel clamps

• Instruction manual

• Warranty card

FAQS

Q1. What input types does PIC101N support?
TC (J, K, T, R, S), RTD PT100, and analog 0–56 mV / 0–10 V / 4–20 mA.

Q2. Does it provide a 24V sensor supply?
Yes—24V DC, 30 mA.

Q3. Does PIC101N have relay outputs?
No—PIC101N is an indicator only.

Q4. Does it support °C and °F?
Yes—the temperature unit is selectable.

Q5. What power supply options are available?
90–270 VAC/DC or 24V DC model.

Q6. What is the panel cutout size?
92 × 46 mm.
