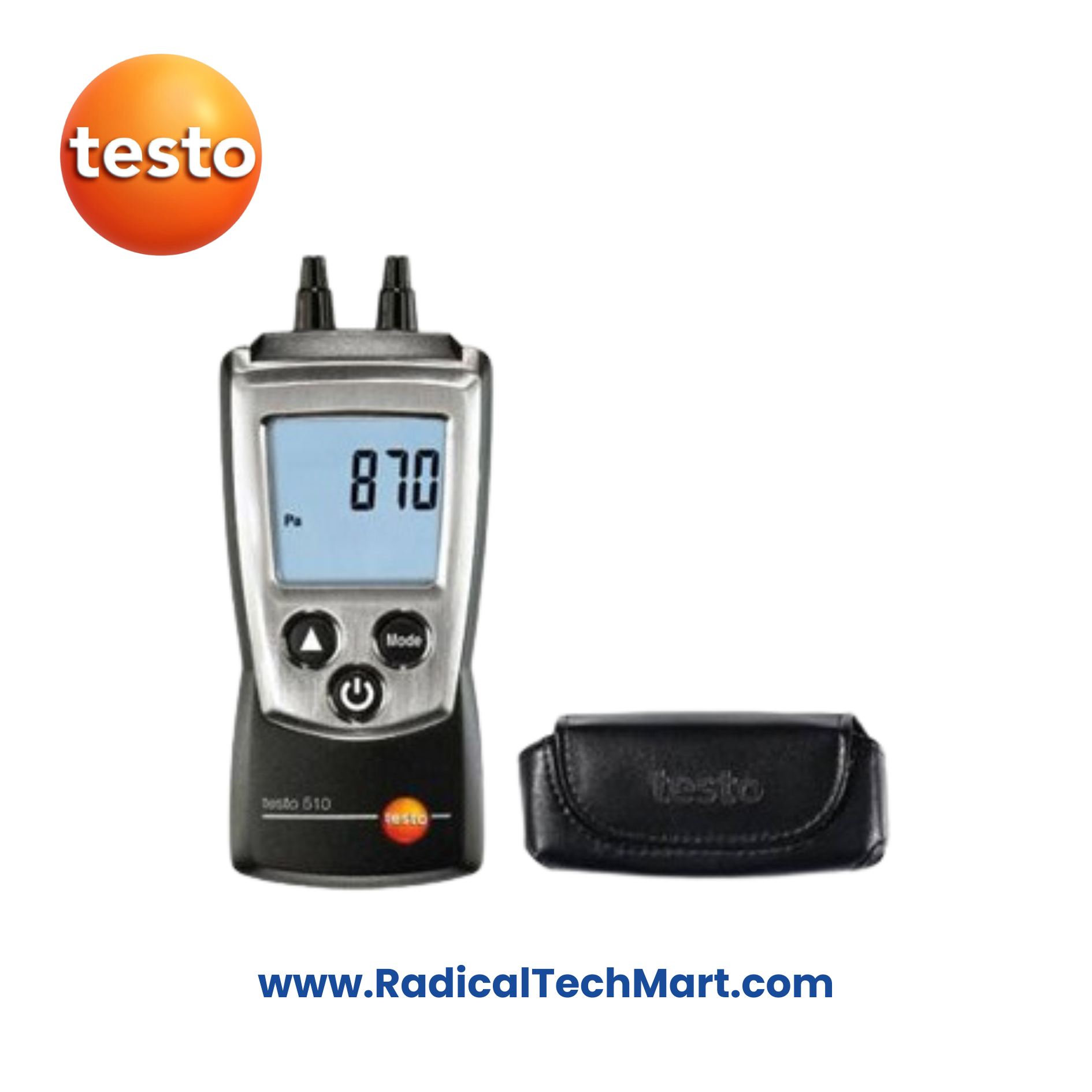

Testo 510 - Differential Pressure Meter
Customize
Share :
Product Summary:
The Testo 510 Differential Pressure Meter is a compact, air density-compensated measuring instrument ideal for HVAC and heating applications. It offers precise pressure readings from 0 to 100 hPa and supports multiple units for versatile use.
Key Features:
Measures differential pressure from 0 to 100 hPa
High accuracy: ±0.03 hPa to ±(0.1 hPa + 1.5 % of mv)
Illuminated digital display
Integrated magnets for hands-free operation
Supports 10 selectable measurement units
Flow measurement enabled via optional Pitot tube
Up to 50 hours of battery life
Lightweight and pocket-sized design
Applications:
Checking filters in air conditioning systems
Static gas and gas flow pressure measurements
Flow velocity measurement in ducts (with optional Pitot tube)
Installation and maintenance in HVAC and sanitary sectors
Monitoring pressure in gas hot water systems
Product Benefits:
Compact and ergonomic for easy field use
Multiple measurement units for global usability
Hands-free mounting for convenient handling
Long battery life reduces maintenance interruptions
Reliable accuracy ensures trustworthy diagnostics
FAQs:
Q. Can the Testo 510 measure air flow directly?
A. Yes, with the addition of a Pitot tube, it can measure air flow velocity in ducts.
Q. Is the device suitable for outdoor use?
A. It is rated IP40, so it's best used in indoor environments or protected areas.
Q. What type of batteries does the Testo 510 require?
A. It runs on two AAA micro batteries, which provide up to 50 hours of operation.
