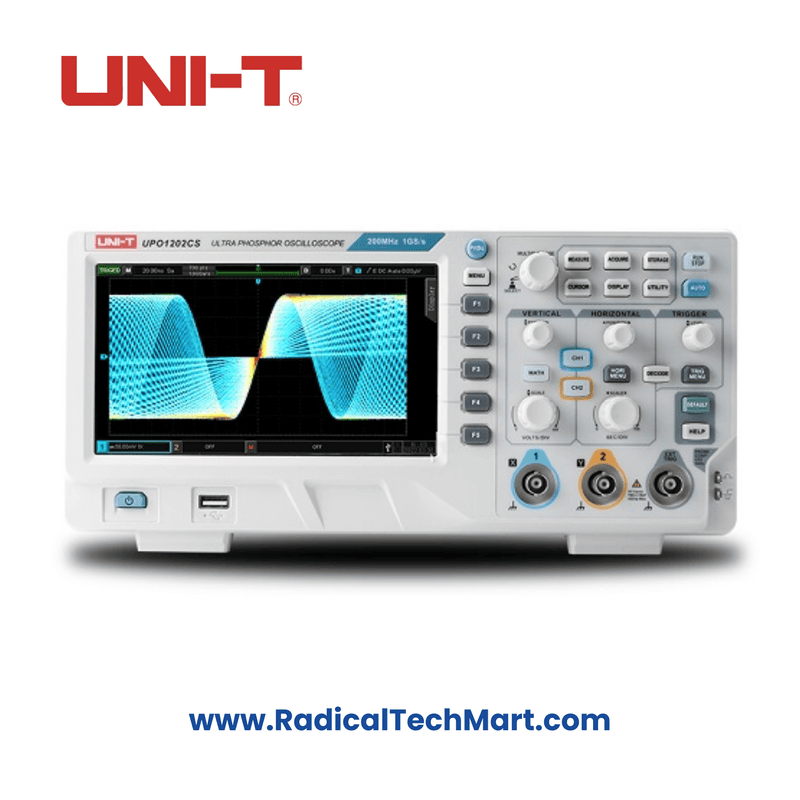

UNI-T UPO1202CS Oscilloscope 2 Channel, 200MHz
Download Now ↓↓
Customize
Share :
Product Summary:
- The UNI-T UPO1202CS is a powerful 2-channel 200MHz digital phosphor oscilloscope, ideal for accurate signal capture, decoding, and waveform analysis with Ultra Phosphor and Fast Acquire technologies.
Product Summary:
- The UNI-T UPO1202CS is a powerful 2-channel 200MHz digital phosphor oscilloscope, ideal for accurate signal capture, decoding, and waveform analysis with Ultra Phosphor and Fast Acquire technologies.
Key Features:
200MHz Bandwidth, 2 Channels, 1GSa/s Sample Rate
Waveform Capture Rate: 500,000 wfms/s
56Mpts Max Memory Depth
Ultra Phosphor Tech for real-time signal persistence
Supports RS232, I2C, SPI, CAN, LIN trigger/decoding
Low background noise: <100μVrms
7" WVGA TFT LCD Display
Enhanced FFT with waterfall & marker measurements
Multiple interfaces: USB Host/Device, LAN, EXT Trig
SCPI support for remote control and automation
Application:
Electronic design and debugging
Automotive and embedded systems diagnostics
Industrial R&D and maintenance
Educational and laboratory testing
Protocol decoding and signal integrity analysis
Product Benefits:
Captures fast signal anomalies with high waveform rate
Multi-layered signal view helps visualize timing and noise
Advanced triggering and decoding supports complex protocols
Large memory depth for extended signal recording
Multi-interface connectivity ensures flexible usage
FAQs:
Q1: What makes the UPO1202CS different from a traditional oscilloscope?
A1: It uses Ultra Phosphor Technology and Fast Acquire, enabling better signal persistence display and capturing of transient anomalies.
Q2: Can I use this oscilloscope for automotive signal analysis?
A2: Yes, it supports hardware decoding and triggering for automotive protocols like CAN and LIN.
Q3: Does it support PC connectivity and remote control?
A3: Yes, it supports USB, LAN, SCPI commands, and Web access for remote control and monitoring.
